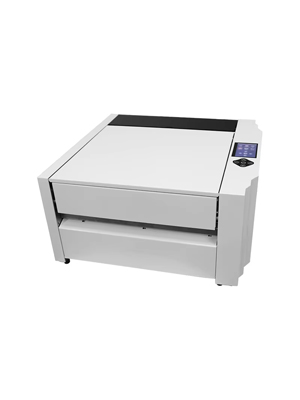

Masung CH380 Signage Printer
Features :
- Print large-format signs and auto-cut — all in one seamless step
- No plates, no hassle. Just design on your computer and print directly via USB — fast, simple, and ready to go
- Thermal transfer printing with premium carbon ribbon delivers razor-sharp text that resists scratching and never fades
- Versatile material compatibility — print on PVC laminated with aluminum foil, PVC label stickers, and more
- Built to last. Waterproof, UV-resistant, and corrosion-proof — your signs stay bold and legible, year after year.
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The CH380 Wide-Format Dual-Color Thermal Transfer Sign Printer is designed for wide-format, dual-color sign printing with automatic cutting functionality. It utilises thermal transfer ribbon printing technology to produce large-format safety sign prints with sharp, scratch-resistant text that will not fade over time.
Specification
Model ： Masung MS-TTR380DAC
| Product | Wide-Format Dual-Colour Thermal Transfer Sign Printer |
| Media Thickness | Labels up to 0.38 mm thick, including roll labels, perforated labels, and aluminium alloy labels |
| Feeding Method | Roll-fed, automatic sensor feeding |
| Resolution | 300 DPI |
| Print Speed | 2 inches/second |
| Media Width | 90 mm – 320 mm |
| Maximum Print Width | 12 inches (303 mm) |
| Resin Ribbon (with RFID Chip) | Outside-wound resin ribbon available in widths of 220 mm, 260 mm, and 310 mm × 100 m length; 1-inch core; shaft length 320 mm with auxiliary shaft length 320 mm; RFID chip attached to the left-end plug of the main ribbon |
| Label Tape (with RFID Chip) | Width: 90 mm – 320 mm × Length: 20 m; 3-inch core (76 mm); end plugs fitted on both sides; RFID chip attached to the right-end plug |
| Interface | USB |
| Operating Voltage and Current | AC 220V (±10%), 2A (max.) |
| Operating Temperature | 0°C to 40°C (non-condensing) |
| Operating Relative Humidity | 20% to 70% RH (non-condensing) |
| Storage Temperature (Printer) | -10°C to 60°C (non-condensing) |
| Storage Temperature (Ribbon) | -10°C to 40°C (non-condensing) |
| Storage Relative Humidity | 10% to 90% RH (non-condensing) |
| Net Weight | 50 KGS |
| Dimensions (L × W × H) | 549 mm × 524 mm × 303 mm |
