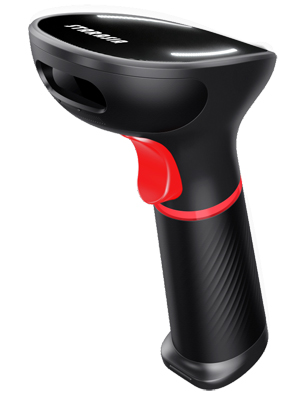

STARASIA HCR12D Handheld USB Barcode Scanner
Features :
- 0.3 million global shutter camera, fast reading speed 60fps/s
- Fast reading on all 1D/2D barcode on paper and screen
- Quick decoding 3mil barcode and difficult barcodes
- Compatible with Windows 7/8/10, iOS, Android, Linux system
- Suitable for retail stores, supermarkets, restaurant, pharmacy
Introduction / Specification / Manual ：
Introduction
HIGH performance image technology, read 3mil high-precision barcode
Specification
| Image (Pixels) | 640 (W) X 480 (H) |
| Light Source | White LED (Scanning) and Red LED (Locating) |
| CPU | 32 bit ARM |
| Image Sensor | CMOS |
| Scanning Speed | 60 FBS |
| Print Contrast | ≥15% |
| Minimum Resolution | ≥3 mil |
| Scan Mode | Manual & Automatic |
| Scanning Angle | (Skew/Pitch) +/-65° |
| Depth of Field | 60 - 360mm (13mil PSC90%) |
| 1D Barcode | UPC-A, UPC-E, EAN 8, EAN-13, Code 128, Code 32, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Industrial 2 of 5, GS1-128, GSI DataBar, GS DataBar Limited, GS1 DataBar Expanded, etc |
| 2D Code | PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR, Aztec, etc. |
| Dimensions | 163 X 68 X 80 mm |
| Weight | 185g |
| Case Material | ABS + TPU |
| Input Voltage | DC 3.6V ~ 5.5V |
| Working Current | 142mA |
| Stand-by Current | 42mA |
| Indicator | LED & Buzzer |
| Interface | USB-HID, USB-VCP or RS232 |
| Cable | ~1.5 M |
| Operating Temperature | -10°C ~ 50°C |
| Humidity | 5% - 95% (Non-condensing) |
| Resistance to Ambient Light | 0~5,000Lux (Fluorescence), 0~100,000Lux (Sunlight) |
