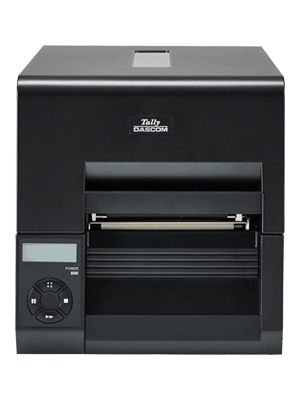

Tally Dascom DL820 Barcode Printer
Features :
- High speed printing
- Easy and quick media loading
- Most popular emulations built-in
- Standard USB and built-in Ethernet interfaces
- Optional cutter to increase productivity
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The DL-820 barcode label printer is an industrial sized direct thermal and thermal transfer printing solution that aims specifically at heavy duty sectors with reduced downtime. This rugged model also features an innovative paper tearing bar allowing paper tearing both upwards and downwards, providing convenience preferred by the operator. A wide range of supported emulations offers compatibility with major brands.
Specification
| Print method | Direct thermal or thermal transfer |
| Print speed | Up to 8 inch per second |
| Print width | 4.25 inch |
| Resolution | 203 dpi |
| Media | Width: 19.6 – 120 mm Thickness: 0.06 – 0.25 mm Core diameter: 25.4 mm Outside diameter: 203 mm |
| Interfaces | USB 2.0, Ethernet 10/100 |
| Emulations | ZPL, EPL, TSC |
| Ribbon | Width: 25.4 – 114 mm Max length: 360 m Core diameter: 25.4 mm Outside diameter: 70 mm |
Catalog
-- No Record --
Manual
-- No Record --
Driver / SDK / Utility
Accessories
-- No Record --
Youtube Tutorial Video
-- No Record --
