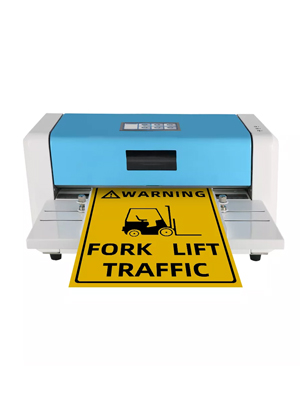

Masung CH570 Sign Label Printer
Features :
- With touchscreen for easy control
- Suits wide label printing
- Compatible with numerous label types
- Automatic sensors paper roll
- Universal USB interface to connect
- Ideal for home, commercial and industrial use
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The MS-CH570 is a robust, wide-format thermal transfer printer engineered specifically for industrial and commercial applications. Designed with user convenience in mind, it features an intuitive touchscreen interface that streamlines operation and enhances overall productivity. This printer delivers exceptional output quality, producing high-resolution labels that are both scratch-resistant and fade-proof, ensuring long-lasting durability even in demanding environments. Furthermore, it offers versatile media compatibility to suit a wide range of labeling needs. For seamless workflow integration, the MS-CH570 connects via USB, enabling direct editing, typesetting, and printing from a computer or laptop to maximize efficiency.
Specification
| Product Name | Wide-Format Thermal Transfer Label Printer |
| Paper Thickness | 0.38mm (Max) |
| Paper Feed | Labels, cardstock, automatic sensor feed |
| Resolution | 300 DPI |
| Print Speed | 2 inches/s |
| Paper Width | 110mm - 320mm |
| Print Width | 10 inches (252mm) |
| Ribbon Type | Resin-based, mixed-based, wax-based (all with RFID) |
| Interface | USB |
| Operating Voltage and Current | AC220V (±10%), 2A (max) |
| Operating Temperature | 0°C-40°C (non-condensing) |
| Operating Relative Humidity | 20-70% RH (non-condensing) |
| Storage Temperature (Complete) | -10-60°C (non-condensing) |
| Storage Temperature (Ribbon) | -10-40°C (non-condensing) |
| Storage Relative Humidity | 10-90% RH (non-condensing) |
| Net Weight | 20KGS |
| Dimensions | 430 mm * 349 mm * 235 mm |
