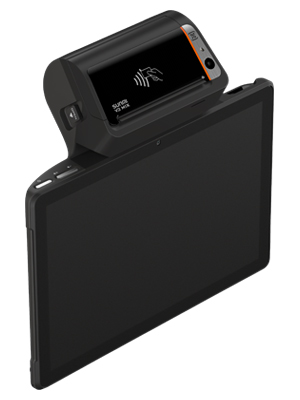

V3-MIX-80
Features :
- MIX your POS terminal to capture businesses anywhere, anytime.
- MIX, design not only for payment
- MIX for higher performance
- MIX for wider extensibility
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
MIX your POS terminal to capture businesses anywhere, anytime
Specification
Product Model :T5711
| OS | Sunmi OS4.0 (based on Android 13) |
| Processor | Qualcomm hexa-core 2.4/1.9GHz |
| Memory | 4GB RAM+32GB ROM |
| Display | 10.1"HD 1280*800 IPS |
Thermal Printer | |
| Print Speed | 70mm/s |
| Paper Roll Width / Diameter | 80mm / 40mm |
| Camera | Front 2MP FF 0.3MP FF for QR code payment |
| Scanner | 2D professional scanner |
| Wi-Fi | Supports IEEE 802.11 a/b/g/n/ac 2.4G/5G |
| Speaker | 1.2W |
| Bluetooth | BT 2.1/3.0/4.2, supports BLE |
| Battery | Removable Lithium battery, 7.2V/2600mAh |
| Button | Power button, volume button and scan button |
| GPS | GPS, AGPS |
| NFC Reader | Type A&B card, Mifare card, FeLica card, ISO/IEC 14443 and ISO 15693 compliant |
| PSAM Card Slot | PSAM Card slot, complies with ISO7816 standard, 3.0V/1.8V |
| SIM Card Slot | Dual Nano SIM Card slot, supports 3.0V/1.8V |
| SD Card Slot | Micro SD |
| Fingerprint | Only for login |
| Power Adapter | Input : AC100-240V, Output: 5V/2A |
| Dimensions (L*W*H) | 246 * 231 * 73 mm |
| Weight | 710g (80mm) |
| Environment | Operating temperature: 0°C ~ 45°C (except 3D camera) Storage temperature: -20°C ~ 60°C |
| Cradle (Optional) | For charging, 3 * USB Type A, RJ11, RJ45 |
| Cradle Customer Display (Optional) | USB GFD 6.7" touchscreen |
