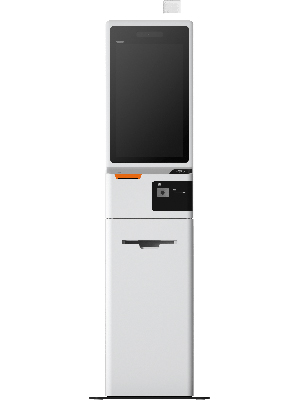

K2-Extendable
Features :
- Passport reading
- RFID identification
- Label printing
- Perforated invoice printing
- Ticket printing
- A4/A5 Laser printing
- Automatic IC card issue
- IC card reading & writing
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
Adoption of self-service kiosk reduces brick and mortar businesses dependence on personnel and reduces waiting times, thus increasing efficiency and customer satisfaction.
Specification
| OS | Android 7.1 Sunmi OS |
| CPU | Six-Core 1.8GHz |
| Memory | 16G ROM+ 4G RAM, Support MicroSD(TF), up to 128GB |
| Display | 24" 1080×1920 FHD, G + G capacitive screen, supports 10 touch points |
| Camera | 3D structured light camera, Support FR payment, membership verification, etc. |
| Scanner | Support 1D, mobile screen and printed barcodes |
| Printer | 80-column thermal printer with automatic cutter Support 80mm OD paper roll Print speed up to 150mm/s（max） |
| Speaker | 2*3W(stereo) |
| WIFI | IEEE 802.11 a/b/g/n, 2.4/5 GHz |
| Ethernet | 10/100/1000M Ethernet self-adaptive |
| Interface | 1× Micro-USB Debug Port, 5× USB A port |
| Size (W x D x H) | Wall-mounted: 394*171*1017mm Floor-standing: 1018*645*1850mm |
| Weight | Wall-mounted: 16.5Kg; Floor-standing: 58Kg |
| Power input | AC100~120V, AC200~240V |
| Environment | Working temperature: 0 ~ 40°C Storage temperature: -20℃ ~ 55℃ |
