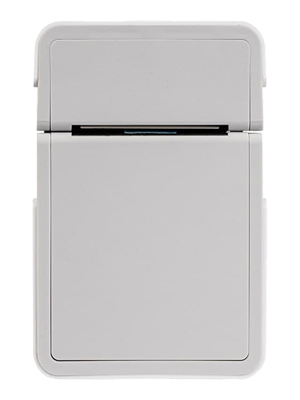

DL2210 Barcode Printer
Features :
- Small footprint
- Easy and quick media loading
- User friendly
- Large-capacity paper tray
- No waste when printing the first page
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The Dascom DL-2210 is a direct thermal wristband label printer featuring an elegant and stylish design. It is compact and does not take up much space. Equipped with dual sensors and dual rollers, it does not require manual positioning, ensuring accurate and smooth paper feeding. It comes with a standard Chinese LCD display, making maintenance simple and convenient. It is an ideal choice for printing hospital wristbands, test tube labels, retail labels, and wristbands for exhibitions and performances.
Specification
Printing Specifications | |
| Printing Method | Direct thermal |
| Printing Resolution | 203 dpi (8 dots per mm) |
| Printing Speed | Max.6inch/s（152mm/s） |
| Printing Width | Max 56mm |
| Paper width | Max 60mm |
| Emulation | ZPL, EPL, TSPL |
Fonts/Characters/Bar Codes | |
| Built-in font | GB18030, ASCII, 1D Barcode, QR Code |
| Connectivity | Standard : USB 2.0 Option : Dual-mode BT 4.0, IEEE 802.11 b/g/n WIFI, Ethernet port choose one of three |
Software | |
| Driver and Configuration Tool | Windows Vista/XP/7/8/8.1/10/11（32bit/64bit） |
| SDK | Android, IOS |
Print Media | |
| Type | Thermal web (continuous paper, label paper, Black Label Paper), thermal folding paper Direction of heat sensitive surface |
| Outer thickness | 0.08~0.3mm |
| Inner diameter of coil core | No restrictions |
| Outside diameter of paper roll | 127mm |
Sensor Management | |
| Standard sensors | Open sensor, paper sensor, label sensor, Paper Tear sensor, Black mark sensor |
Physical Specifications | |
| Dimensions | 254*113*171mm |
| Weight | About 1.7 kg |
Environmental Specifications | |
| Operating condition | 5~40℃ / 30~80%RH(non-condensing) |
| Storage condition | -10~50℃ / 10~90%RH(non-condensing) |
Environmental Specifications | |
Operator Controls and Indicators | |
| LED indicator | Three LED lights(green, red, red) |
| Key Only One key | Feed Buzzer None |
Memory Capacity | |
| Memory | SDRAM: 32M Flash: 8M |
| Receive buffer | 256K bytes |
Paper Feeding method | |
| Feeding | Web, rear folding paper, external support into thepaper, external support intothe paper |
Regulatory Approvals | |
| Certification | CE, CCC |
Options and Accessories | |
| Option | Cutter(for receipt, label and wristband), peeler |
