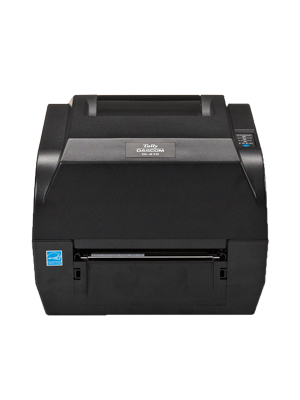

DL210 Barcode Printer
Features :
- Easy and Quick media loading
- Variety of interfaces
- Supports ZPL and EPL emulation
- Optional Cutter
- 300M ribbon and 5 inch (127 mm) media capacity
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
Tally Dascom’s DL-210 thermal transfer printer offers reliability, precision and performance in desktop size.
The user friendly design of the printer allows a space saving vertical opening and an easy to use print mechanism
ensures quick media and ribbon loading. The clear panel enable simple and effective operation making it very simple
to use.
The DL-210 is easily integrated into existing systems as there are several interfaces also available. In addition to this, the DL-210 is also available with an optional cutter to meet industry requirements.
Specification
| Print Speed | 6 ips (152 mm/sec.) |
| Print Width | 108 mm |
| Print Method | Direct Thermal or Thermal Transfer |
| Resolution | 203 dpi |
| Fonts | Font A - Font V (ZPL) |
| User defined | fonts can be downloaded into FLASH/SDRAM> |
| Print Head Life | 30 km or 6 months |
| Memory | 8 MB Flash, 8 MB SDRAM |
| Interfaces | Standard USB (2.0 Full Speed) Optional Serial (RS-232C), Parallel (IEEE 1284), Ethernet (10/100) |
| Emulations | ZPL II, EPL |
| Consumables | Ribbon, Direct Thermal/ Thermal Transfer paper and labels |
| Ribbon | Width: 33 - 110 mm; Length: 300 M |
| Core diameter | 1“ (25,47 mm) |
| Outside diameter | 68 mm |
| Media Width | 25 - 118 mm |
| Thickness | 0.06 - 0.18 mm |
| Core diameter | 1“ or 1,5“ (25,4 mm or 37 mm) |
| Outside diameter | 5“ (127 mm) |
| Sensors | Black Mark, Label Gap, Farbband |
| Barcode | 1D: Code 11, Interleaved 2-of-5, Code 39, Code 49, Code 93, Code 128, Planet Code, EAN 8, EAN 13, UPC-E, UPC-A, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, Plessy 2D: PDF 417, MaxiCode, QR Code, Data Matrix |
| 3 KGS | |
| Size (W x D x H) | 230 x 290 x 176 mm |
| Power Voltage | 100 - 240 V AC - 50/60 Hz |
| Temperature | +5° to +40° C |
| Humidity | 10% to 98% (non condensing) |
| Print Volume | up to 300 m/day |
| Printer Driver | Windows 8/8.1/10/11 and Server 2012/2016/2019/2022 |
| Options Models | with cutter or peeler, Serial, Parallel, Ethernet interface |
