SAE-20AH Dynamic Speaker, SAE-20CH Dynamic Speaker

SAE-20AH, SAE-20CH

Features :

  • Dynamic Speaker
  • Non-washable
  • Heat Resistant
  • Reflow
  • High SPL
  • Automotive Use
  • ※ As for non washable products, dip soldering should not be implemented.

Introduction / Specification / Manual :

Introduction

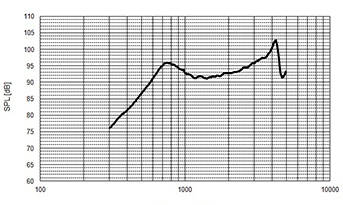

Frequency Response:

(SAE-20AH)

SAE-20AH Frequency Response

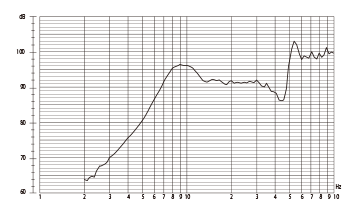

(SAE-20CH)

SAE-20CH Frequency Response



Dimensions:(size:φ20×20×4.5mm)

(SAE-20AH)

SAE-20AH Dimensions

unit:mm/housing material:LCP

Specification

SAE-20AHSAE-20CH
Nominal Input(W)0.80.5
Impedance(Ω)8±1.6
Resonance Frequency(Hz)850±100700±100
※SPL(dB/10cm)95.5±396±3
Operating Temperature(℃)-40 ~ +105-40 ~ +85
Storage Temperature(℃)-40 ~ +105
Mass(g)3

※Valure applying nominal input(sine wave, averrage of 1K, 1.6K, 2K, 3.2Khz)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
