TMB Series

TMB Series

Features :

  • Electric Sound type
  • Non-washable / washable
  • Dip Solder
  • Low Current Consumption
  • Small

Introduction / Specification / Manual :

Introduction

Frequency Response:

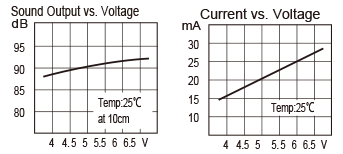

(TMB-05B)

TMB-05B Frequency Response

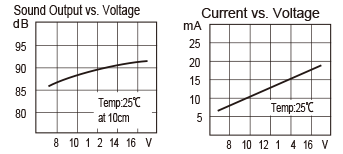

(TMB-12B)

TMB-12B Frequency Response



Dimensions:(size:φ12×9.5mm)

(TMB-05B)

TMB-05B Dimensions

unit:mm/housing material:PPE-M

※ Longer pin is(+)polarity

Specification

TMB-05BTMB-12B
Rated Voltage(V)512
Operating Voltage(V)4~6.58~16
※ Mean Current Consumption(mA)MAX30(TYP22)MAX30(TYP15)
※ SPL at MIN10cm(dB)MIN85(TYP90)
※ Basic Frequency(Hz)2,300±300
☆Response Time(msec)MAX50
Operating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +85
Mass(g)2

※Value applying rated voltage ☆Value applying min. operating voltage

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
