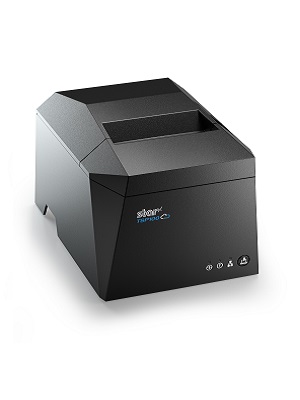

TSP143IV WB Thermal Printer
Features :
- Support CloudPRNT technology for printing directly from online ordering platforms and websites
- Support WebPRNT without extra investment
- USB A charging for both USB C and Micro USB based Android devices with Android Open Accessory (AOA) support
- USB C port for Windows, Linux and MacOS devices
- Built-in Wifi, Bluetooth, USB and Ethernet LAN interface
- Operates either horizontally or vertically or wall mounted
- Application: Wifi Kitchen Printer, Wireless POS Printer, Bluetooth Receipt Printer, Bluetooth POS Printer, Webpage Printer, HTML Printer
- Optional StarAsia M200 Printer Status Indicator
Introduction / Specification / Catalog / Manual / Driver / SDK / Utility / Accessories ：
Introduction
The TSP143IV-UEWB adds wireless LAN and Bluetooth® connectivity, enabling flexible installation—eliminating the need for separate inventory.
Video：
Specification
Series ： TSP100IV
Model ： TSP143IV WBEthernet + USB + WIFI + Bluetooth (MFi Certified)
General : | |
| Printing Method | Direct Thermal Line Printing |
| Application | Hospitality, Retail, mPOS, eCommerce |
| Printing Speed | 250mm/sec |
| Resolution | 203dpi |
| Emulation | StarPRNT |
| Sensors | Paper End, Cover Open |
| Number of column | 48/64 columns, depending on paper width |
| Auto-Cutter | Partial Cut (Leave center point) |
| Installation | Horizontal / Vertical (Holes for wall-mount are available) |
Paper : | |
| Paper Width | 80mm standard / 58mm(with paper guide) |
| Paper Thickness | 0.049mm - 0.085mm |
| Roll Diameter | Max 83mm |
| Paper Exit Direction | User selectable |
| Printable Width | 50.8mm(58mm paper width), 72mm(80mm paper width) |
Interfaces : | |
| Connectivity | Wireless (2.4GHz/5GHz: IEEE802.11/b/g/n/a/ac/ax) Bluetooth® (MFi Certified) LAN USB Type C X 1 Windows/Mac USB Type A X 1 (AOA for Android, Up to 1.5A charging) Ethernet X 1 (supported WebPRNT & CloudPRNT) Cash Drawer Port X 1 |
Power : | |
| Energy Star Certified | Passed |
| Power Supply | Internal with power cable included 100 ~ 240V AC+/-10% |
Measurement : | |
| Dimensions | 140 X 169 X 123mm (W X D X H) |
| Weight | 1.3 KGS (without paper roll) |
Accessories : | |
| Included in the box | Power Cable, Paper Guide, USB C Cable, Rubber feet, LAN Cable, Easy Setup Sheet |
| Options | BCR12D Barcode Scanner, Buzzer, SCD222U Customer Display |
Catalog
Star TSP100IV Series Catalog - English Version [ 811KB ]
STAR Cloud Print Introduction - English Version [ 4.32MB ]
StarAsia BCR12D Barcode Scanner Catalog - English Version [ 518KB ]
StarAsia HCR12BT Barcode Scanner Catalog - English Version [ 1140KB ]
StarAsia CD850 Cash Drawer Catalog - English Version [ 684KB ]
StarAsia CD3336 Cash Drawer Catalog - English Version [ 292KB ]
Manual
Star TSP100IV Online Manual [ Click Here ]
Star TSP100IV WB Easy Setup Guide [ 2.92MB ]
Star TSP100IV General Specification [ 3.25MB ]
Star Windows Software Installation Manual [ 3.05MB ]
StarPRNT Command Specifications for BSC10II, TSP100IV, Portable Printer, mC-Label2, mC-Label3, mc-Print2, mc-Print3 & mPOP series [ 3.03MB ]
Linux CUPS Driver Software Manual [ 2.26MB ]
How to install the Star JavaPOS Driver for Linux [ 56KB ]
Star JavaPOS Software Manual [ 460KB ]
Mac CUPS Driver Software Manual [ 2.99MB ]
STAR OPOS Control Application Development Guide for POSPrinter [ 577KB ]
Star CloudPRNT Developer Guide [ Click Here ]
WebPRNT User's Manual [ Click Here ]
StarXpand SDK for React Native Manual [ Click Here ]
More manuals ...
Driver / SDK / Utility
Accessories
3D Model - TSP100IV Series CAD Drawings [1.73MB]
StarAsia M200 Printer Status Indicator Manual - Installation Manaul - English Version [246KB]
Youtube Tutorial Video
