SCM-09C Dynamic Speaker

SCM-09C

Features :

  • Dynamic Speaker
  • Non-washable
  • Square
  • Thin
  • Small type
  • High SPL
  • ※ As for non washable products, dip soldering should not be implemented.

Introduction / Specification / Manual :

Introduction

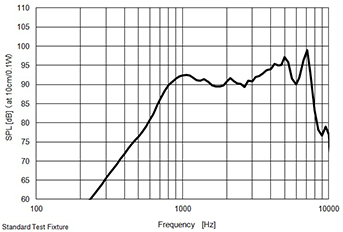

Frequency Response:

(SCM-09C)

SCM-09C Frequency Response

(sine wave)

Dimensions:(size:φ9x18xt3.4mm)

(SCM-09C)

SCM-09C Dimensions

Specification

SCM-09C
Nominal Input(W)0.4
Impedance(Ω)8+0.8/-1.6
Resonance Frequency(Hz)
※ SPL(dB/10cm)91.5±3dB
Operating Temperature(℃)-30 ~ +70
Storage Temperature(℃)-40 ~ +85
Mass(g)0.9

※Value applying nominal input(sine wave, average of 1K, 1.6K, 2K, 3.2Khz)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
