PMX Series

PMX Series

Features :

  • Sounder
  • Non-washable
  • Side sound port
  • Hand Solder
  • Small
  • High SPL
  • ※ As for non washable products, dip soldering should not be implemented.

Introduction / Specification / Manual :

Introduction

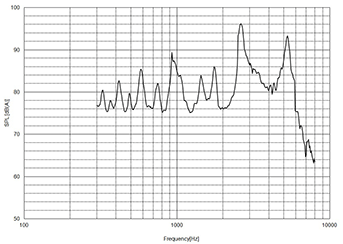

Frequency Response:

(PMX-04B)

PMX-04B Frequency Response

※Value applied voltage:1.5V, square wave:1/2 duty, distance for measurement:10cm



Dimensions:(size:φ12x7.5mm)

(PMX-04B)

PMX-04B Dimensions

unit:mm/housing material:PPE-M

Specification

PMX-04B
Rated Voltage(V)1.5
※ Mean Current Consumption(mA)MAX70
Coil Resistance(Ω)6.5±1.0
※ SPL at MIN 10cm(dBA)MIN85(TYP92)
Rated Frequency(Hz)2,731
Operating Voltage(V)MAX2
Operating Temperature(℃)-20 ~ +60
Storage Temperature(℃)-30 ~ +70
Mass(g)2

※Value applying rated voltage(2,731Hz, 1/2 duty, square wave)

Manual

Catalog [ 949KB ]

Technical Data [ 2630KB ]

Product list by specification [ 527KB ]

Caution for Using [ 200KB ]
