TMX Series

TMX Series

Features :

  • Sounder
  • Non-washable / Washable
  • Dip Solder
  • High SPL
  • Low Frequency
  • Automotive Use

Introduction / Specification / Manual :

Introduction

Frequency Response:

(TMX-05C3T CS NL)

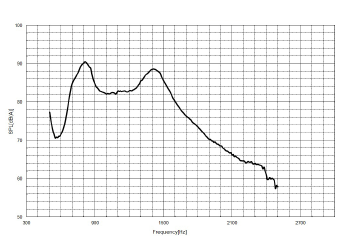

TMX-05C3T CS NL Frequency Response

※applied voltage:5V, square wave:1/2duty, distance for measurement:10cm

(TMX-06A3T NL)

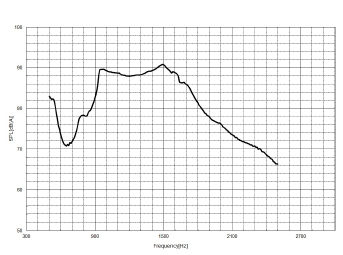

TMX-06A3T NL Frequency Response

※applied voltage:6V, square wave:1/2duty, distance for measurement:10cm

(TMX-12 SA3NL)

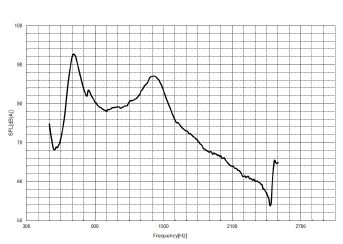

TMX-12 SA3NL Frequency Response

※applied voltage:12V, square wave:1/2duty, distance for measurement:10cm



Dimensions:

(TMX-06A3T NL)

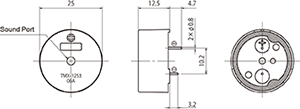

TMX-06A3T NL Dimensions

unit:mm/housing material:PPE-M

Specification

TMX-12 SA3NLTMX-06A3T NLTMX-05C3T CS NL
Rated Voltage(V)1265
※ Mean Current Consumption(mA)MAX55MAX75MAX80
Coil Resistance(Ω)120±1536±530±5
※ SPL at MIN 10cm(dBA)MIN85(TYP90)MIN85(TYP89)
Rated Frequency(Hz)1,000730800
Operating Voltage(V)147MAX6
Operating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +120-40 ~ +85
Mass(g)9

※Value applying rated voltage(Rated Frequency, 1/2duty, square wave)
