QMX Series

QMX Series

Features :

  • Sounder
  • Non-washable / Washable
  • Dip Solder
  • Small
  • High SPL
  • Automotive Use

Introduction / Specification / Manual :

Introduction

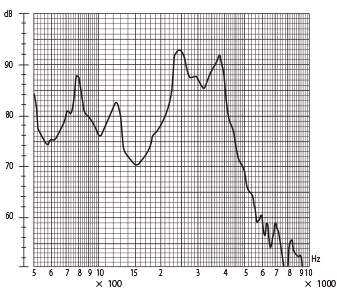

Frequency Response:

(QMX-05)

QMX-05 Frequency Response

※applied voltage:5V, square wave:1/2duty, distance for measurement:10cm



Dimensions:(size:φ12×9mm)

(QMX-05)

, QMX-05 Dimensions

unit:mm/housing material:PPE-M

Specification

QMX-05QMX-12
Rated Voltage(V)512
※ Mean Current Consumption(mA)MAX40(TYP33)MAX40(TYP28)
Coil Resistance(Ω)47±5140±14
※ SPL at MIN 10cm(dBA)MIN85(TYP92)
Rated Frequency(Hz)2,400
Operating Voltage(V)MAX8MAX15
Operating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +85
Mass(g)2

※Value applying rated voltage(2,400Hz, 1/2duty, square wave)
